Crawler Bulldozers — Sourced to Order
Concrete mixers are what we stock knowledge on. Bulldozers are a line we source when a customer asks for one — usually alongside a mixer order, on the same shipment and the same set of export documents.
Model names and specifications are those of the original equipment manufacturer, quoted from publicly available OEM brochures. We hold no dealership, agency or distribution agreement with any equipment brand. Units are sourced and exported on a per-order basis.
Specifications
Five models we can source
Figures are transcribed from publicly available manufacturer literature. Where a brochure contradicts itself, the row is left out rather than resolved by guesswork — one unit's blade capacity is printed three different ways in the same document, so it is not published here at all.
| Parameter | CBD-131 | CBD-179 | CBD-187 | CBD-154 | CBD-154L |
|---|---|---|---|---|---|
| Machine type | Crawler bulldozer | Crawler bulldozer | Crawler bulldozer | Crawler bulldozer | Crawler bulldozer |
| HS code | 8429119000 | 8429119000 | 8429119000 | 8429119000 | 8429119000 |
| Engine | |||||
| Engine make | Weichai | Chongqing Cummins | Chongqing Cummins | Guangxi Cummins | — |
| Engine model | WD10G178E25 | NT855C280S10 | NT855-C280 | Cummins QSL9.3 | — |
| Emission standard | Tier 2 / Stage II | Tier 1 / Stage I | Tier 1 / Stage I | EPA Tier 3 / EU Stage III | — |
| Rated power | 131 kW (176 hp / 178 ps) @ 1,850 rpm | 179 kW (240 hp / 243 ps) @ 2,000 rpm | 187 kW (251 hp / 254 ps) @ 2,000 rpm | 154 kW (206 hp / 209 ps) @ 2,000 rpm | — |
| Net power | 120 kW (161 hp / 163 ps) @ 1,850 rpm | 169 kW (227 hp / 230 ps) @ 2,000 rpm | — | 140 kW (187 hp / 190 ps) @ 2,000 rpm | — |
| Maximum torque | 830 N·m | 1,050 N·m @ 1,400 rpm | 1,098 N·m @ 1,200 rpm | 1,000 N·m @ 1,200 rpm | — |
| Displacement | 9.726 L | 14 L | 14 L | 9.3 L | — |
| Cylinders | 6 | 6 | 6 | 6 | — |
| Fuel tank | 350 L | 480 L | 480 L | 420 L | — |
| Drivetrain | |||||
| Transmission | Power shift | Power shift | Power shift | Countershaft power shift | — |
| Travel speed, maximum | 9.72 km/h | 12 km/h | 12 km/h | 1st 3.6 / 4.3 km/h; 2nd 6.6 / 7.8 km/h; 3rd 10.6 / 12.6 km/h (forward / reverse) | — |
| Undercarriage | |||||
| Track shoe width | 510 mm | 560 mm | 560 mm | 510 mm (560 / 610 mm optional) | 950 mm (1,100 mm optional) |
| Track length on ground | 2,430 mm | 2,840 mm | 2,840 mm | 2,640 mm | 3,140 mm |
| Track gauge | 1,880 mm | 2,000 mm | 2,000 mm | 1,880 mm | 2,300 mm |
| Ground pressure | 67 kPa | 76 kPa | 76 kPa | 63.7 kPa | 28.4 kPa |
| Ground clearance | 400 mm | — | — | 400 mm | 400 mm |
| Blade | |||||
| Blade type | Straight | Straight | Straight | — | — |
| Blade capacity | 4.5 m³ | 7.8 m³ | 7.8 m³ | 4.3 m³ | 4.3 m³ |
| Blade width | 3,420 mm | 3,725 mm | 3,725 mm | 3,422 mm | 4,270 mm |
| Blade height | 1,130 mm | 1,435 mm | 1,435 mm | 1,130 mm | 1,050 mm |
| Dimensions & weight | |||||
| Overall length | 5,180 mm | 5,500 mm | 5,500 mm | — | — |
| Width over tracks | 2,390 mm | 2,560 mm | 2,560 mm | 2,390 mm | 3,400 mm |
| Overall height | 3,200 mm | 3,380 mm | 3,380 mm | 3,312 mm | 3,372 mm |
| Operating weight | 17,000 kg | 24,540 kg | 24,540 kg | 17,500 kg (blade, cab, standard equipment, full tanks, 75 kg operator) | 20,000 kg |
A dash means the figure is not published in the source literature, or that two printings of it disagree. Ask and we will put the question to the manufacturer in writing rather than fill the gap ourselves.
The range
Configurations we source
Standard track, LGP wide track and straight-blade variants. Ratings and dimensions are confirmed against the build sheet before we quote.

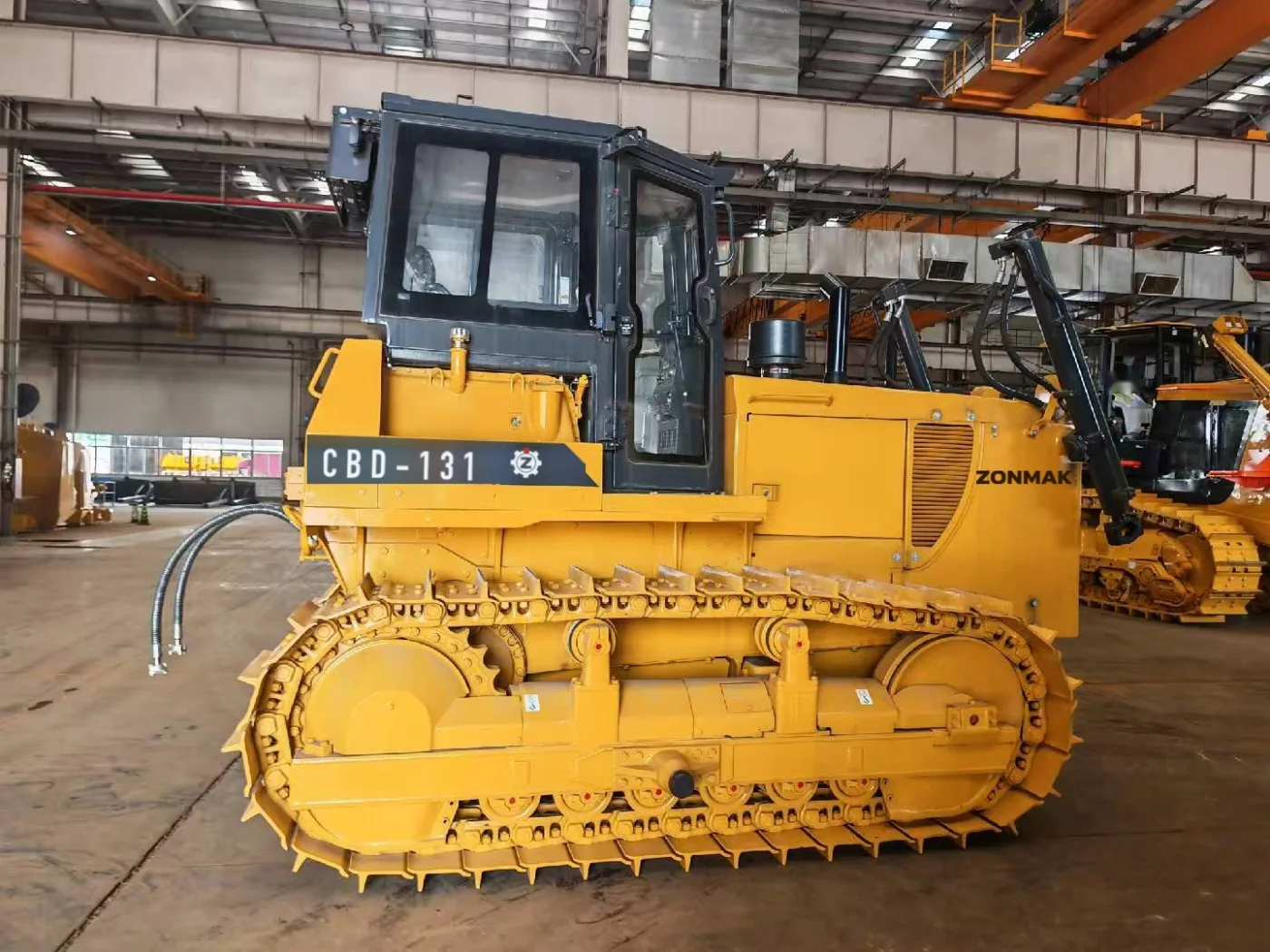

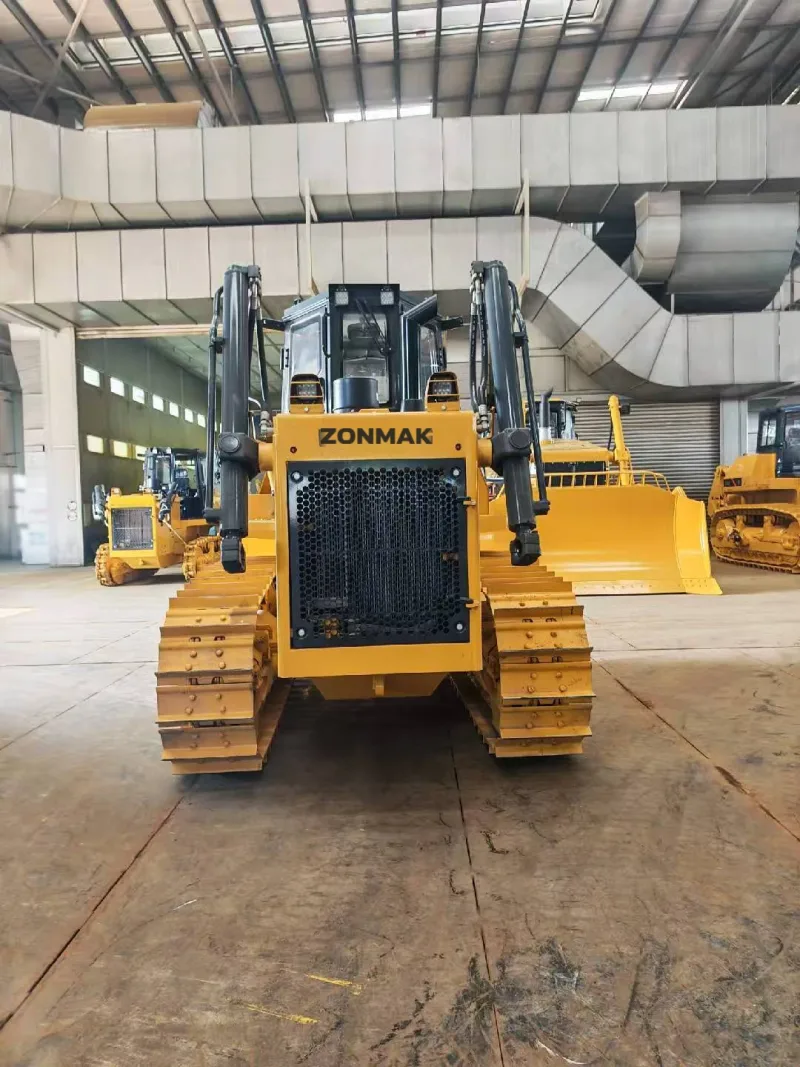

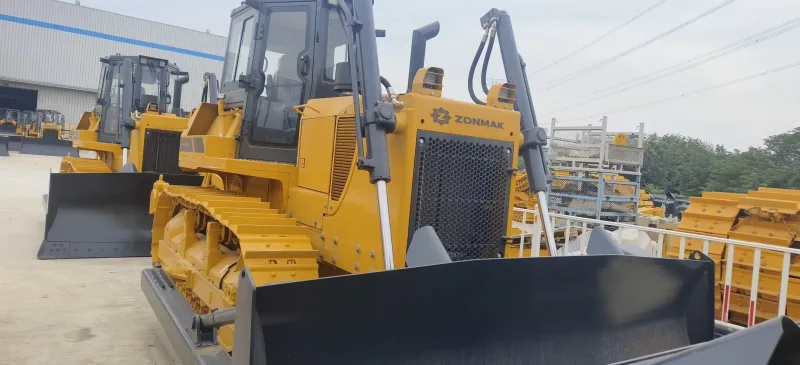

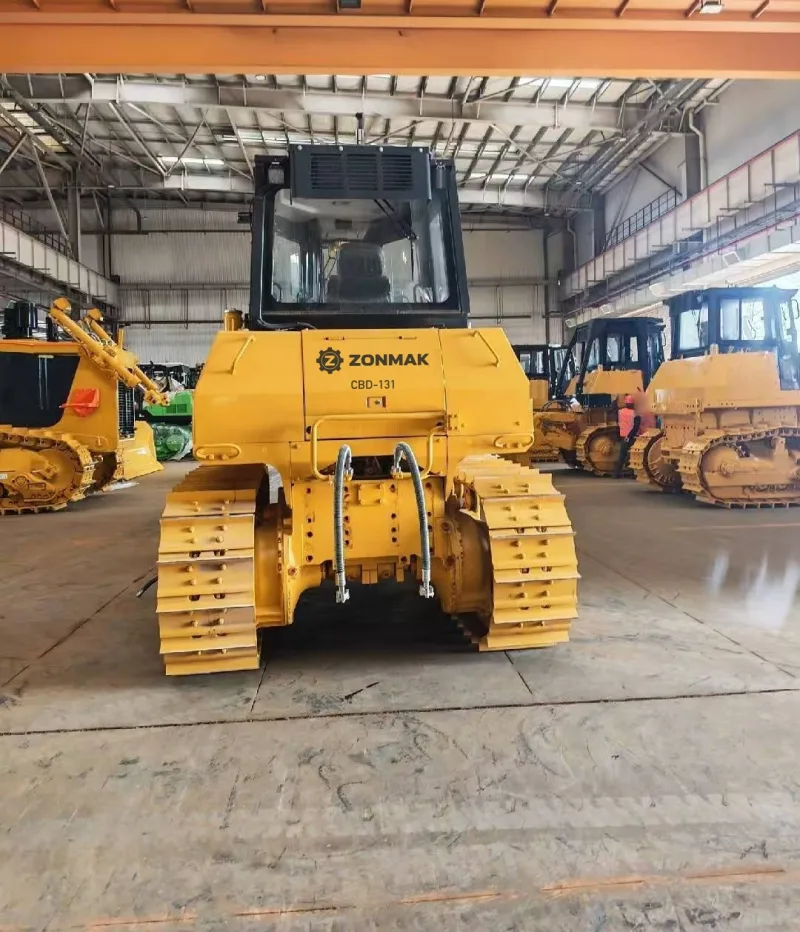

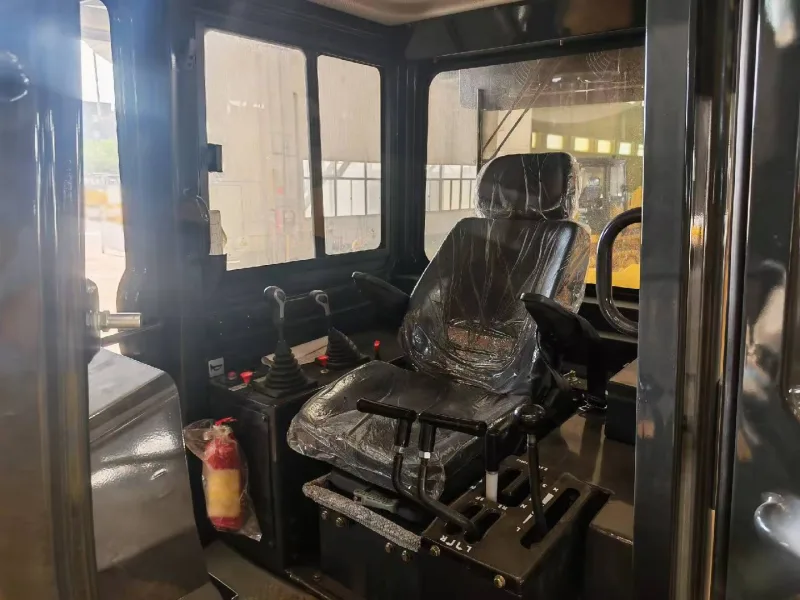

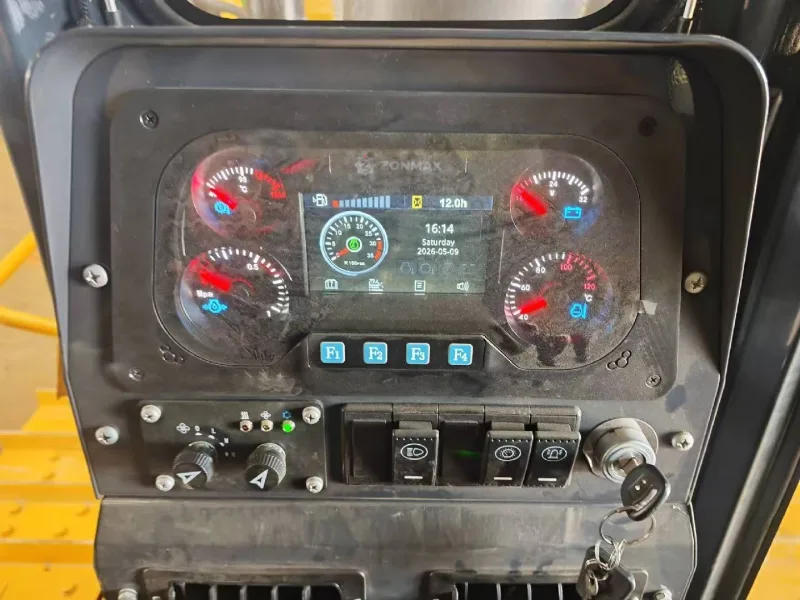

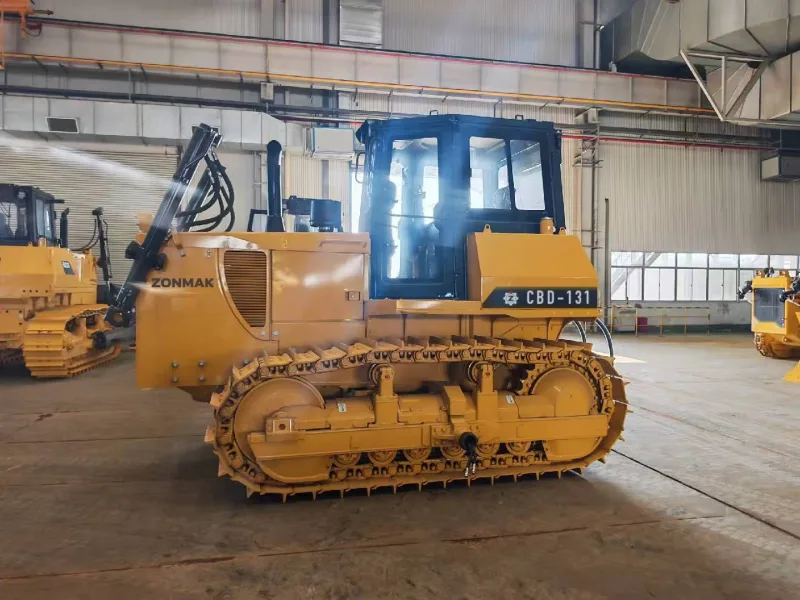

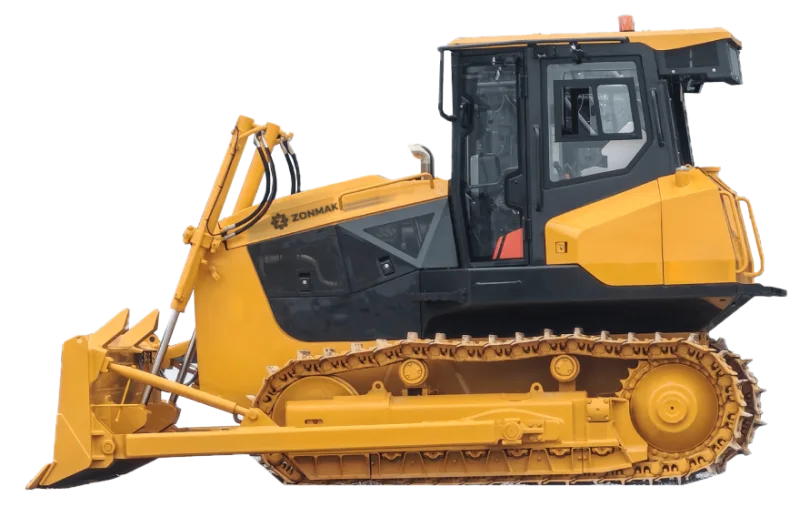

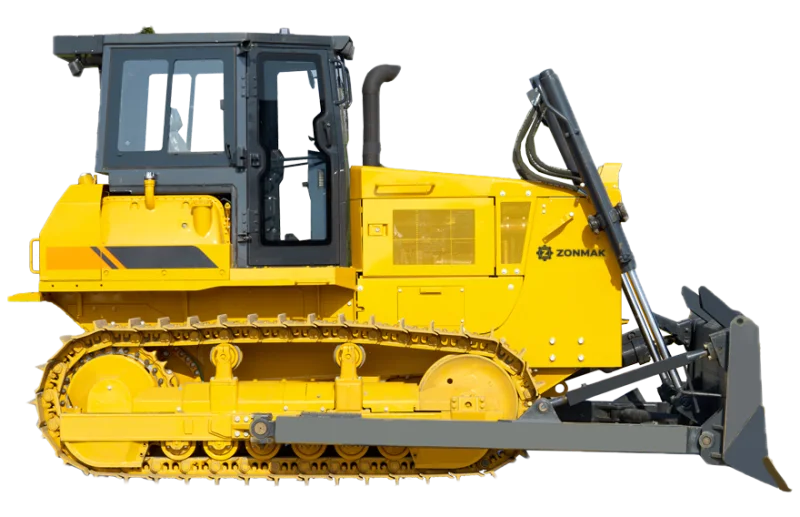

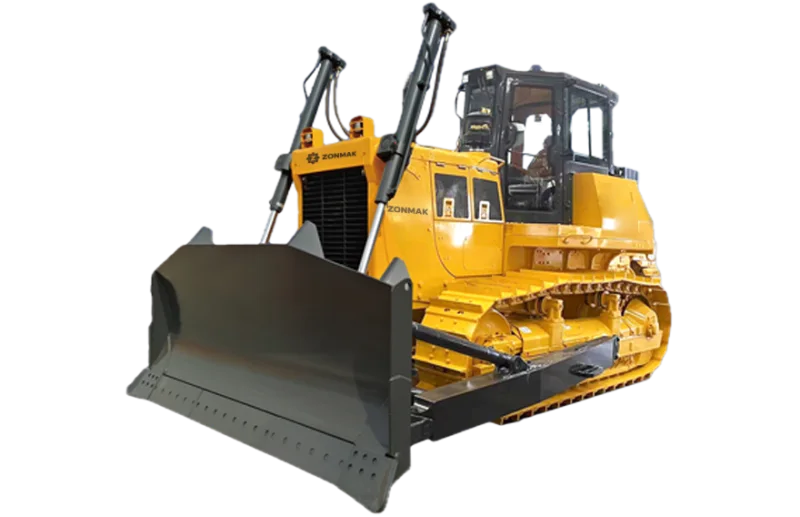

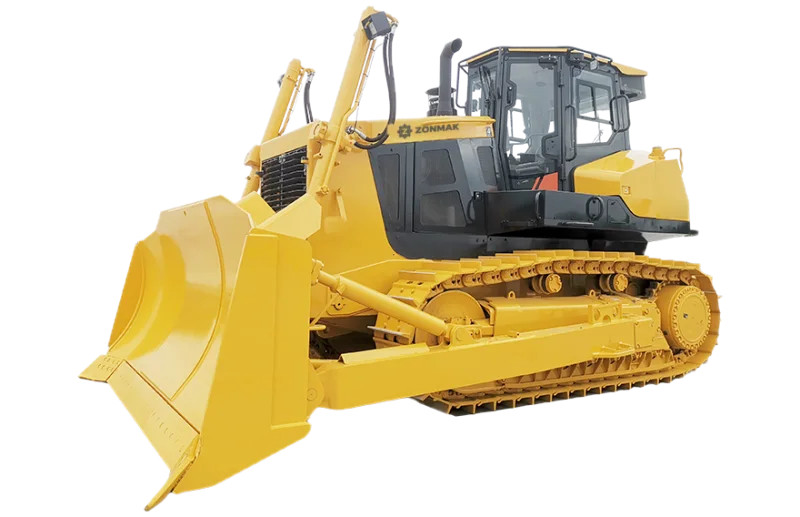

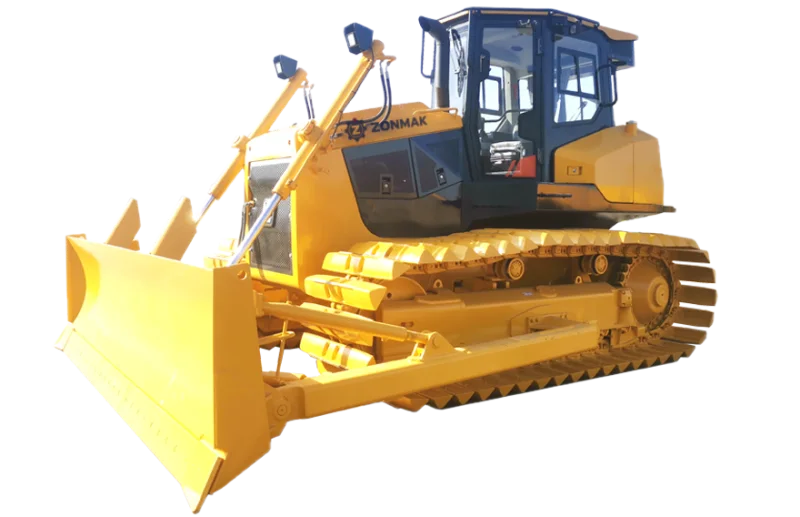

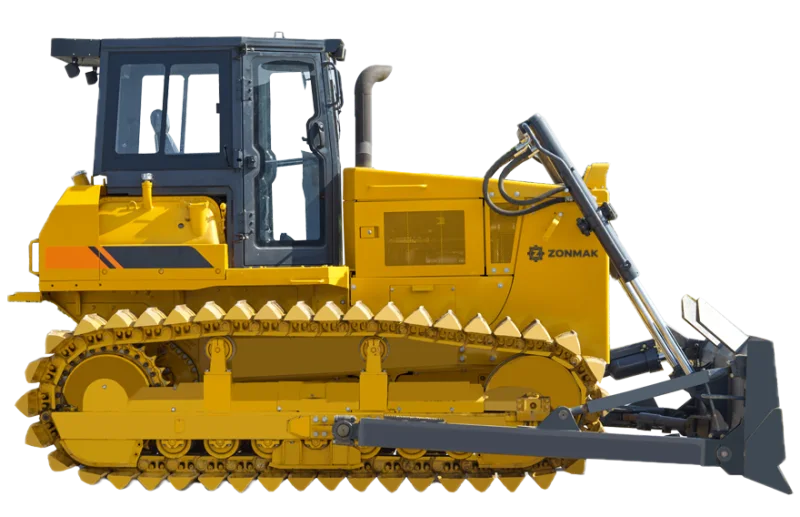

Images show machines from the same series; specification is per the model ordered.
Transport
None of these travel in a box
Every machine here is over the door opening of a 40HQ on width, height or both, so the mode is roll-on/roll-off, breakbulk or a flat rack. That changes the freight bill materially, and it is quoted with the machine rather than after it.
- CBD-131
- RoRo · Breakbulk · Flat rack
- CBD-179
- RoRo · Breakbulk · Flat rack
- CBD-187
- RoRo · Breakbulk · Flat rack
- CBD-154
- RoRo · Breakbulk · Flat rack
- CBD-154L
- RoRo · Breakbulk · Flat rack
Before you ask
What we can and cannot tell you about these
- We can source and export any of these on a per-order basis, on the same documents and the same inspection process as a mixer order.
- We cannot publish a price or a lead time for them. Neither is fixed, and a figure we cannot stand behind is worse than no figure.
- The emission standard in the table is the one printed in the manufacturer literature. It is not a statement that the machine meets any particular country’s import requirement — that is checked against your customs before anything is booked.
- Spare parts and warranty for these units run through the manufacturer’s own network in your country, not through us. We will say so before you order, not after.
Our own line is self-loading concrete mixers, where we hold the specifications, the container data and the certificate route ourselves.
